| Price: | Negotiable |
| Delivery Period: | 15-20 workdays |
| Payment Method: | LC, T/T, PayPal, Western Union, Small-amount payment, Money Gram |

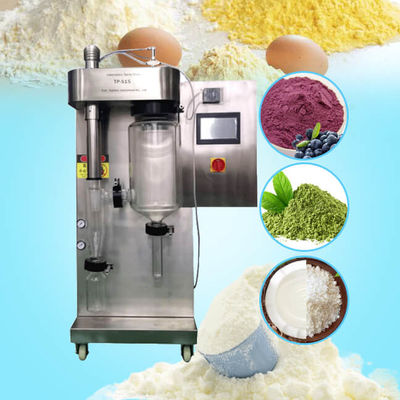

TOPTION this type small scale spray dryer is mainly used to make liquid material directly into micro powder, suitable for all solution such as emulsion, suspending liquid, etc, especially suitable for heat-sensitive materials. The drying speed of spray drying equipment is fast. After the material liquid is atomized, the surface area is greatly increased. In the hot air flow, 95%-98% of the water can be evaporated instantly, and the drying time is only a few seconds. And the dried product has a uniform particle size, more than 95% of the dry powder is in the same particle size.
The picture below is some of the spray drying equipment and solutions we have customized for our customers. TOPTION have a professional and experienced team of engineers. Please contact us ( info@toptionlab.com ) to tell us your actual needs, materials to be made, and the output you want to obtain. We provide the most reasonable customized solutions within 4 hours for your reference.
The working principle of lab spray dryer ( industry type 5L 10L 15L spray drying equipment are optional)
Application of spray drying equipment
Technical parameters of lab small scale spray dryer
| Item | Unit | TP-S15 | TP-S30 | TP-S30C |
| Max capacity | ml/h | 1500-2000 | 3000 | 3000 |
| Temperature range of inlet air | ℃ | 40℃ ~ 300℃ | 30℃ ~ 300℃ | 30℃ ~ 300℃ |
| Temperature range of outlet air | ℃ | 40℃ ~ 140℃ | 30℃ ~ 140℃ | 30℃ ~ 140℃ |
| Spray system | / | Two-fluid nozzle | Two-fluid nozzle | Centrifugal nozzle |
| Precision of temp | ℃ | ±1 | ||
| Dryer time | S | 1.0 ~ 1.5 | ||
| Speed of squirt pump | ml/h | 50 ~ 2000 | 3000 | 3000 |
| Nozzle size | mm | 0.5/0.7/0.75/1.0/1.5/2.0 | ||
| Spray direction | / | Downwards co-current | ||
| Heater Power | / | 3KW 220V | ||
| Total power | / | 10KW 380V | ||
| Heat source | / | Electric | ||
| Air compressor | / | Built-in oil-free air compressor | ||
| Dried powder restoring rate | % | ≥95 | ||
| Dimension | mm | 940*850*1500 | 1700*1100*150 | 1700*1100*150 |
| Maximum moisture evaporation | Kg/h | 2 | 3 | 3 |
|
|
