| Price: | Negotiable |
| Delivery Period: | 15-20 workdays |
| Payment Method: | LC, T/T, PayPal, Western Union, Small-amount payment, Money Gram |

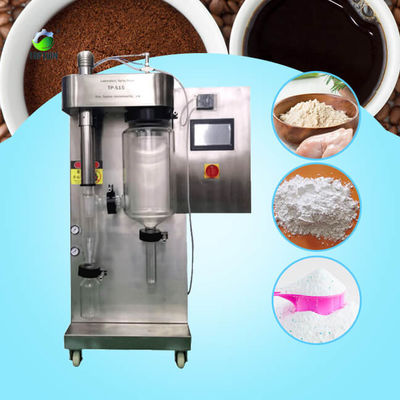

TOPTION mini spray dryer is made of double-mirror high-quality 304 stainless steel material, through ISO & CE certification, dependable quality guarantee, 1 year warranty period, lifetime service. Spray drying technology is widely applied for Beverages, Flavours and Colouring, Milk and Egg Products, Plant and Vegetable Extracts, Pharmaceuticals, Heat sensitive Materials, Plastics, Polymers and Resins, Perfumes, Ceramics and Advanced Materials, Soaps and Detergents, Blood, dyestuffs, Food Stuffs, Adhesives, Oxides, Textiles, Bones, Teeth and Tooth Amalgan, etc.
Technical parameters of spray drying system milk powder making machine
| Item | Unit | TP-S15 | TP-S30 | TP-S30C |
| Max capacity | ml/h | 1500-2000 | 3000 | 3000 |
| Temperature range of inlet air | ℃ | 40℃ ~ 300℃ | 30℃ ~ 300℃ | 30℃ ~ 300℃ |
| Temperature range of outlet air | ℃ | 40℃ ~ 140℃ | 30℃ ~ 140℃ | 30℃ ~ 140℃ |
| Spray system | / | Two-fluid nozzle | Two-fluid nozzle | Centrifugal nozzle |
| Precision of temp | ℃ | ±1 | ||
| Dryer time | S | 1.0 ~ 1.5 | ||
| Speed of squirt pump | ml/h | 50 ~ 2000 | 3000 | 3000 |
| Nozzle size | mm | 0.5/0.7/0.75/1.0/1.5/2.0 | ||
| Spray direction | / | Downwards co-current | ||
| Heater Power | / | 3KW 220V | ||
| Total power | / | 10KW 380V | ||
| Heat source | / | Electric | ||
| Air compressor | / | Built-in oil-free air compressor | ||
| Dried powder restoring rate | % | ≥95 | ||
| Dimension | mm | 940 x 850 x 1500 | 1700 x 1100 x 150 | 1700 x 1100 x 150 |
| Maximum moisture evaporation | Kg/h | 2 | 3 | 3 |
The working principle of lab spray dryer, PLC fully automatic control system, the operation interface defaults to English interface, and it also supports customization of your local language, making your operation more convenient to the greatest extent. Make liquid material directly into micro powder. For liquids with a moisture content of 40-60% (up to 90% for special materials), they can be dried into powder products at one time, without crushing and screening after drying, reducing production procedures and improving product purity.
Package of spray dryers ( As you can see from the packaging, the wooden box is very tightly packed. If there is any damage during transportation, our company assumes full responsibility to ensure that you receive the spray drying equipment in good condition. And the installation of the spray drying machine is very simple, we have detailed installation instructions and installation videos. )
Customer customization case of lab spray dryer
The above picture is our customized spray drying powder making equipment for customers, including
1.Inlet air temperature
The temperature is increased to 350 degrees, currently the highest is customized to 350 degrees, the maximum standard temperature is 300 degrees.
2. Material replacement
Change the material to 316 stainless steel; 2L, 3L, 5L, 10L are all available; standard material is 304.
3 .Add dust collection system
OEM, professional customization with greatest flexibility, contact info@toptionlab.com to ask price list and sevice now.
|
|
