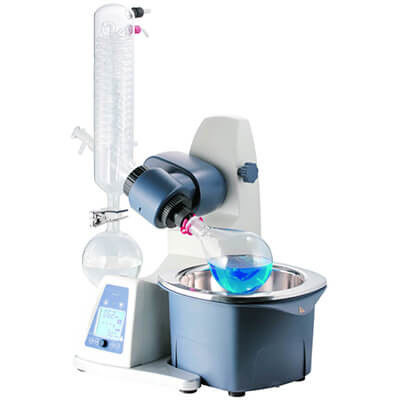

TOPTION LED Digital Rotary Evaporator is an essential instrument in chemical laboratories for the efficient and gentle removal of solvents from samples by evaporation.
This set lab mini rotary evaporator can be combined with vacuum pump, vacuum controller and circulating chiller to provide excellent distilling solutions in a wide range of applications.
Technical parameters of alcohol distillation rotary evaporator:
| Specifications | RE100-S alcohol distillation rotary evaporator |
| Motor Type | Brushless DC motor |
| Speed Range | 20-200rpm |
| Display LED | (Speed, temperature, time) |
| Clockwise and Anti-clockwise | Yes |
| Heating Temperature Range | Room temp. to 180℃ |
| Control Accuracy | Water:±1℃ oil: ±3℃ |
| Heating Power | 1010 W |
| Stroke Displacement | Manual 110mm + auxiliary100mm |
| Interval Time Setting Range | 1~999s |
| Dimension [D×W×H] | Main Unit: 440×320×450mm |
| Heating Bath: 300x300x240mm | |
| Weight | Main Unit: 7kg Heating Bath: 3kg |
| Permissible Ambient Temperature | 5~40oC |
| Permissible Relative Humidity | 80%RH |
| Protection Class | IP20 |
| USB Interface | Yes |
| Voltage/Frequency | 100~120/200~240V 50/60 Hz |
| Power | 1100 W |
Main features of laboratory condenser rotary evaporator:
1. 5L heating bath with a wide temperature range (RT~180°C), independent temperature control, make it can be used separately. Water/oil heating mode can be changed only through a switch.
2. Manual lift combined with auxiliary lift for precise positioning of the glassware.
3. PID control ensures high temperature accuracy at ±1℃ (water).
4. Overheating protection temperature at 220°C.
5. Boil-dry protection, automatically power off if heating without water/oil in the heating bath.
6. Speed range from 20 to 200rpm, timing interval operation in clockwise and anticlockwise directions for drying process.
7. Patented condenser (cooling surface 1200/1700cm2 for selection), double helix condensing tube + center circular arc design to speed up the flow rate of liquid with excellent cooling effect.
8. Ejection mechanism ensures easy exchange of evaporating flask.
9. Adjustable immersion angle
Patented double spring sealing ring which is made of PTFE provides an excellent sealing performance.
10. Remote function provides PC control and data transmission.
Quality is our culture, strickly on every detail quality.
Technical parameters of fractionating distillation rotary evaporator:
| Specifications | RE100-Pro fractionating distillation rotary evaporator |
| Motor Type | Brushless DC motor |
| Speed Range | 20-280rpm |
| Display | LCD (speed, temperature, time) |
| Clockwise and Anti-clockwise | Yes |
| Heating Temperature Range | Room temp. to 180oC |
| Control Accuracy | ±1℃ |
| Heating Power | 1300W |
| Stroke Displacement | automatic 150mm |
| Timer | Yes |
| Time Setting Range | 1-999min |
| Dimension[D×W×H] | 465×457×583mm |
| Weight | 15kg |
| Permissible Ambient Temperature | 5-40℃ |
| Permissible Relative Humidity | 80%RH |
| Protection Class | IP20 |
| Weight | 2.8kg |
| Protection class | IP21 |
| USB Interface | Yes |
| Voltage/Frequency | 100-120/200-240V 50/60 Hz |
| Power | 1400 W |
Main features of mini rotary evaporator:
1. Digital display of both rotation speed and heating temperature allows for optimal control of all distillation processes.
2. Automatic motor lift releases the evaporating flask to a safe position in case of power failure.
3. 5L heating bath with wide temperature range from room temp. to 180°C.
4. Overheating protection temperature at 220°C.
5. Speed range from 20 to 280rpm, and interval operation in clockwise and anticlockwise directions for drying process.
6. Patented condenser (cooling surface 1500cm²) with excellent cooling effect.
7. Ejection mechanism ensures easy removal of evaporating flask.
8. Patented double spring sealing ring which is made of PTFE provides an excellent sealing performance.
9. Remote function provides PC control and data transmission.
|
|
