| Price: | Negotiable |
| Delivery Period: | 15-20 workdays |
| Payment Method: | LC, T/T, PayPal, Western Union, Small-amount payment, Money Gram |

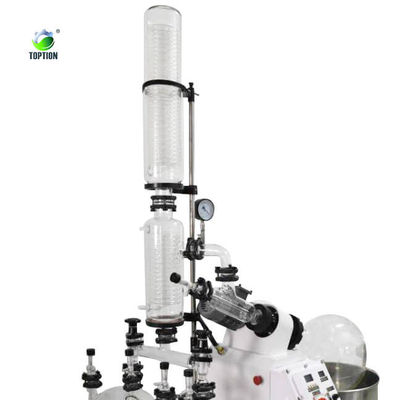

TOPTION rotovap distillation equipment wide application include manufacturing plant, evaporation, concentration, chemistry, pharmaceutical, CBD industry, ethanol / alcohol recovery, solvent remove, etc. Fully customizable with wide capacity range 100L 50L 30L 20L 10L 5L 3L 2L 1L, cooling circulating pump ( chillers ) and vacuum pump are available, rotary evaporator complete set factory directly sale help you save cost most.
The working principle of rotary evaporator is under the vacuum condition, constant temperature heating, evaporation bottle be rotary by constant speed, material forming a large area film at the wall of bottle, efficient evaporation. Solvent vapors through the efficient glass condenser cooling, recycling in the collection bottle, improve the efficiency of evaporation.
Technical parameters of rotary evaporator 20l
| Model | RE-5210 | RE-5220 |
| Warranty period | 1 Year | |
| Voltage | 220V/110V, 50/60Hz (customizable) | |
| Power | 3000W | 5000W |
| Capacity | 10L | 20L |
| Rotating flask | 10L / F95 | 20L / F125 |
| Collection flask | 5L, bottom discharge | 10L+3L, bottom discharge |
| Lifting type | Automatic lifting | |
| Dimension | 1250x800x800 | 1260x1030x780 |
| Weight | 140 kg | 145 kg |
| Certification | CE/ISO9001 | |
| Advantages | Long Service Life, Easy to Operate, Energy saving, High Safety Level | |
| Package | 1. The glass parts will be wrapped with foam,then put into the carton; the main body portion will be packed in wooden cases. 2. Both neutral and customized packaging can be available. |
|
Structure and advantages of rotary evaporator equipment
|
|
