In order to meet the confined production process, filter washing and drying reactor, three-in-one filter has been developed. TOPTION this production system can realize half automatic or complete automatic operation control.
Nutsche Filter Dryer main working steps
1. Feeding
Open the feeding valve to feed in the tank, paddle should be in the upper position when feeding, if necessary, can be lowered stirring paddle for low speed stirring, so that the material is evenly distributed. When the material reaches the specified process stop feeding, close the feed valve.
2. Washing
Washing fluid at 0.2 ~ 0.3MPa pressure by the rotating nozzle cleaning, and stirring paddle has been suspended high.
3. Filter
After washing, upper the stirrer to related position, stop stirring, the liquid will be discharged from bottom. Then repeat the filtering steps until you get perfect material.
4. Drying
5. Material discharge
Sampling analysis before discharge, if ok, then discharge them.

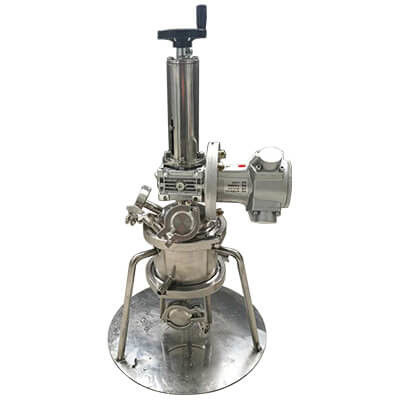

Main technical parameters of laboratory nutsche filter:
| No | Details | Remark | ||
|
1 |
description |
Filter area |
0.07m2 |
|
|
filtering accuracy |
5μm |
Standard 5um 1um-2mm is optional |
||
|
Inner diameter |
300mm |
|||
|
volume |
0.02m3 | |||
|
Empty weight |
600kg | |||
|
Total height |
1700mm+150mm | |||
|
Tank design pressure |
-0.1～0.4MPa |
|||
|
Jacket operation pressure |
0.5MPa |
|||
|
Tank operation temp |
0～160℃ |
|||
|
Jacket operation temp |
0～160℃ |
|||
|
Tank working medium |
Chemical materials |
|||
|
Jacket working medium |
Cooling water, hot water, hot oil, steam | |||
|
Heating position |
Tank(jacket), bottom (jacket) |
|||
|
Discharge method |
Manual side discharge |
|||
|
Pressure tank design standard |
GB150.1～150.4-2011 |
|||
|
Flange design standard |
HG20592-2009 |
|||
|
Clamp design standard |
ISO2852 |
|||
| Discharge valve port size |
100 |
|||
|
Discharge port size |
50 |
|||
|
2 |
Mixing drive apparatus |
Stirrer stroke |
100mm | |
|
Stirrer motor power |
1.1kw | |||
|
voltage |
220 V |
|||
|
Rated frequency |
50Hz |
|||
|
phase |
2 |
|||
|
Max rotation speed |
15rpm |
|||
|
Min rotation speed |
0rpm |
|||
|
3 |
main configuration list |
O shape seal |
Coaded with PTFE |
|
|
Gear motor |
Eugene |
|||
|
Reducer |
1:100 Reduction ratio |
|||
|
Machinery Seal |
Mechanical seal, wetted material 316L, + bellows | |||
|
Spray ball |
Fixed type, 1 pc, SS316L | |||
More nutsche filter customize, want to know detail information of nutsche filter dryer, welcome contact info@toption-china.com 24h/7days online service.
Agitated Nutsche Filter Dryer
Nutsche filter dryer is mainly used for crystallization liquid filtration, washing, drying process.
It includes: feeding, beating, filtering, washing, drying, discharging, on-line inspection (optional), etc key steps to prepare for the cleanroom of next mixing process.
TOTPION this Nutsche Filter Dryer also has CIP, SIP functions.
Structural materials of agitated nutsche filter dryer:
Below for Stainless steel equipment and surface treatment:
|
No |
Parts |
Material |
Finish degree |
Remark |
|
1 |
Tank inner surface |
316L |
0.4 |
|
|
2 |
Tank outside insulation |
SS304 |
0.8 |
|
|
3 |
Discharge valve which contact to material |
316L |
0.4 |
|
|
4 |
Stirrer |
316L |
0.4 |
|
|
5 |
Spindle metal bellows |
316L |
N/A |
|
|
6 |
CIP tube (inner side): |
316L |
0.4 |
|
|
7 |
Cleaning ball |
316L |
N/A |
|
|
8 |
Multi-layer sintered net |
316L |
N/A |
|
|
9 |
Tank inside tubes |
316L |
0.4 |
|
|
10 |
Discharge tube |
316L |
0.4 |
|
|
11 |
Support |
SS304 |
0.8 |
|
|
12 |
Clamp |
SS304 |
0.8 |
More detail information of nutsche filter dryer welcome contact info@toption-china.com 24h/7days online service.
|
|
