| Price: | Negotiable |
| Delivery Period: | 15-20 workdays |
| Payment Method: | LC, T/T, PayPal, Western Union, Small-amount payment, Money Gram |

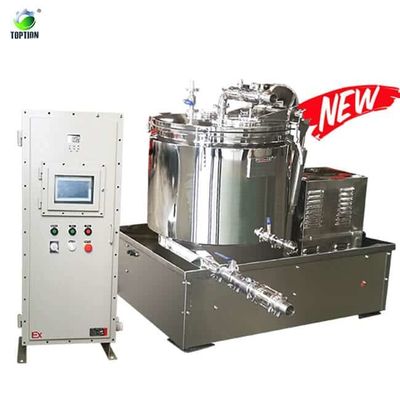

TOPTION stainless steel ethanol extraction centrifuge wide capacity range 15lbs~220lbs of biomass/batch, you could achieve 98% extraction rate from biomass and 97% ethanol removal. PLC control system design makes this type ethanol extraction centrifuge is specially used for the separation and extraction of ethanol from plant raw materials.
Ul certification is available, its special structure allows the working temperature to be as low as -80℃, prevents the volatilization of ethanol, and improves production efficiency.
Technical parameters of ethanol extraction centrifuge machine
| Main parameters | TOP-C15 | TOP-C30 | TOP-C50 | TOP-C110 | TOP-C160 | TOP-C220 |
| Vessel diameter(inch) | 12 | 18 | 24 | 32 | 40 | 47 |
| Vessel volume(L) | 18 | 48 | 110 | 251 | 393 | 565 |
| Biomass/batch(lbs) | 15 | 30 | 50 | 110 | 160 | 220 |
| Alcohol solvent (L) | 57 | 110 | 201 | 377 | 546 | 745 |
| Standard Max speed(r/min) | 3000 | 2000 | 1500 | 1000 | 900 | 700 |
| Optional 1: speed | 4000 | 3000 | 2000 | 1500 | 1200 | 1000 |
| Main motor power (kw) | 2.2/3 | 3/4 | 5.5/7.5 | 7.5/11 | 11.0/15 | 18.5/22 |
| Vessel load-bearing (lbs) | 25 | 50 | 100 | 320 | 450 | 540 |
| Dimension (L*W*H)mm | 850*610*900 | 980*680*1000 | 1350*990*1300 | 1700*1200*1500 | 1970*1400*1500 | 2200*1700*1500 |
| Machine weight(kg) | ≈300 | ≈500 | ≈800 | ≈1400 | ≈1900 | ≈2500 |
Structure design of ethanol extraction centrifuge
UL certification ethanol extraction centrifuge equipment
4. Level gauge, check if the amount of alcohol soak is enough at any time.
5. Nitrogen protection device, using nitrogen for “inert environmental protection”.
6. Drum welds are 100% non-destructive inspection, strict dynamic balance test. No stiffeners, reducing sanitary dead angles, easy to clean, low running noise .
7. CE certified electrical appliances, UL / EN standards available.
8. Storage tank, -80℃ Chiller, Filter bag are available.
TOPTION as crude oil extraction equipment manufacturer with more than 15 year experience, design this type centrifuge extraction, which has a high degree of automation, large processing capacity, convenient operation and maintenance, and can realize remote control. Its special structure allows the working temperature to be as low as -80℃, prevents the volatilization of ethanol, and improves production efficiency.
Ethanol extraction equipment professional customize, contact info@toptionlab.com for fast communication.
|
|
