| Price: | Negotiable |
| Delivery Period: | 15-20 workdays |
| Payment Method: | LC, T/T, PayPal, Western Union, Small-amount payment, Money Gram |

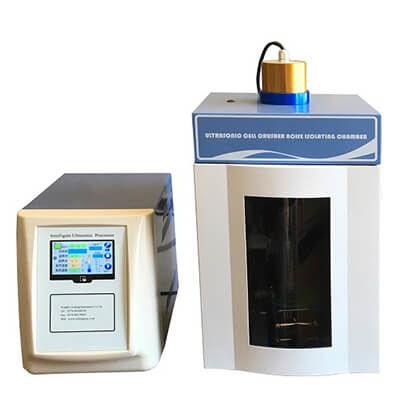

4.3 Inch touch screen series ultrasonic homogenizer sonicator is our company’s new developed product. With full functions, beautiful appearance, reliable performance.
Ultrasonic homogenizer could be used to crush a variety of animal & plant cells, viruses cells, also suitable for emulsification, separate, homogenization, extraction, defoaming, cleaning and speed up chemical reaction, etc.
2~150W, 5~250W, 5~650W, 10-900W adjustable ultrasonic homogenizer technical parameters:
| Model | TU-150E4 | TU-250E4 | TU-650E4 | TU-900E4 |
| Frequency
(KHz) |
20-25KHz Automatic tracking | 20-25KHz Automatic tracking | 20-25KHz Automatic tracking | 20-25KHz Automatic tracking |
| Power(W) | 2-150W adjustable | 5-250W adjustable | 5-650Wadjustable | 10-900W adjustable |
| Horn (mm) | Φ6 | Φ6 | Φ6 | Φ6 or 10 |
| Optional Horn (mm) | Φ2,Φ3,Φ8 | Φ2,Φ3,Φ8,Φ10 | Φ2,Φ3,Φ10,Φ12 | Φ2,Φ3,Φ8,Φ10,Φ12,Φ15 |
| Disruption Capacity(ml)
(Need to choose the corresponding horn) |
0.1-150 | 0.1-300 | 0.2-500 | 0.2-600 |
| Input method | Touch control | |||
| Display | 4.3 inch TFT | |||
| Display items | Temperature, power, wave form, amplitude, pulse, time etc, total 10 items. | |||
| Protection device | Self-diagnostic function, program automatic error correction, over-load / over- temp. Protection display,etc. | |||
| Login password protection | Have | |||
| Computer on-line function | Optional | |||
| Sound proof box | Illumination, sterilization, automatic lifting, etc function. | |||
| Other function | Date storage 20 sets, print, ultrasonic interval / continuously etc function. | |||
10~1000W, 20~1200W,20~1800W adjustable ultrasonic cell crusher technical parameters:
| Model | TU-1000E4 | TU-1200E4 | TU-1800E4 |
| Frequency
(KHz) |
20-25KHz Automatic tracking | 19.5-20.5KHz Automatic tracking | 19.5-20.5KHz Automatic tracking |
| Power(W) | 10-1000W adjustable | 20-1200W adjustable | 20-1800W adjustable |
| Horn (mm) | Φ6 or Φ10 | Φ20 | Φ20 or Φ22 |
| Optional Horn (mm) | Φ2,Φ3,Φ8,Φ10,Φ12,Φ15 | Φ6,Φ10,Φ15,Φ22,Φ25 | Φ10,Φ15,Φ20,Φ25,Φ28 |
| Disruption Capacity(ml)
(Need to choose the corresponding horn) |
0.1-750 | 10-1000 | 50-1200 |
| Input method | Touch control | ||
| Display | 4.3 inch TFT | ||
| Display items | Temperature, power, wave form, amplitude, pulse, time etc, total 10 items. | ||
| Protection device | Self-diagnostic function, program automatic error correction, over-load / over- temp. Protection display, etc. | ||
| Login password protection | Have | ||
| Computer on-line function | Optional | ||
| Sound proof box | Illumination, sterilization, automatic lifting, etc function. | ||
| Other function | Date storage 20 sets, print, ultrasonic interval / continuously etc function. | ||
How to choose ultrasonic horn?
| Model
Chinese standard |
English system | Frequency
(KHz) |
Suggest power range reference value | Crush capacity reference value |
| Φ2 | 1/12″ | 20-25KHz | min-150W | 0.2-5ml |
| Φ3 | 1/8″ | 20-25KHz | min-250W | 3-10ml |
| Φ6 | 1/4″ | 20-25KHz | 20-400W | 10-100ml |
| Φ10 | 5/12″ | 20-25KHz | 100-600W | 30-300ml |
| Φ12 | 1/2″ | 20-25KHz | 200-900W | 50-500ml |
| Φ15 | 5/8″ | 20-25KHz
19.5-20.5KHz |
300-1000W | 100-600ml |
| Φ20 | 4/5″ | 19.5-20.5KHz | 400-1100W | 100-1000ml |
| Φ22 | 5/6″ | 19.5-20.5KHz | 400-1100W | 200-1000ml |
| Φ25 | 1″ | 19.5-20.5KHz | 800-1500W | 500-1200ml |
7 Inch LCD display ultrasonic cell crusher is a multi-function & multi-purpose instrument, which use high strength ultrasonic to cause cavitation effect in liquid, for material ultrasonic processing.
2~150W, 5~250W, 5~650W, 10~900W adjustable ultrasonic homogenizer technical parameters:
| Model | TU-150E7 | TU-250E7 | TU-650E7 | TU-900E7 |
| Frequency
(KHz) |
20-25KHz Automatic tracking | 20-25KHz Automatic tracking | 20-25KHz Automatic tracking | 20-25KHz Automatic tracking |
| Power(W) | 2-150W adjustable | 5-250W adjustable | 5-650W adjustable | 10-900W adjustable |
| Horn (mm) | Φ6 | Φ6 | Φ6 | Φ6 or 10 |
| Optional Horn (mm) | Φ2,Φ3,Φ8 | Φ2,Φ3,Φ8,Φ10 | Φ2,Φ3,Φ10,Φ12 | Φ2,Φ3,Φ8,Φ10,Φ12,Φ15 |
| Disruption Capacity(ml)
(Need to choose the corresponding horn) |
0.1-150 | 0.1-300 | 0.2-500 | 0.2-600 |
| Input method | Touch control | |||
| Display | 7 inch TFT | |||
| Display items | Temperature, power, wave form, amplitude, pulse, time etc, total 10 items. | |||
| Protection device | Self-diagnostic function, program automatic error correction, over-load / over- temp. Protection display, etc. | |||
| Login password protection | Have | |||
| Computer on-line function | Optional | |||
| Sound proof box | Illumination, sterilization, automatic lifting, etc function. | |||
| Other function | Date storage 20 sets, print, ultrasonic interval / continuously etc function. | |||
10~1000W, 20~1200W, 5~650W, 20~1800W adjustable ultrasonic cell crusher technical parameters:
| Model | TU-1000E7 | TU-1200E7 | TU-1800E7 |
| Frequency
(KHz) |
20-25KHz Automatic tracking | 19.5-20.5KHz Automatic tracking | 19.5-20.5KHz Automatic tracking |
| Power(W) | 10-1000W adjustable | 20-1200W adjustable | 20-1800W adjustable |
| Horn (mm) | Φ6 or Φ10 | Φ20 | Φ20 or Φ22 |
| Optional Horn (mm) | Φ2,Φ3,Φ8,Φ10,Φ12,Φ15 | Φ6,Φ10,Φ15,Φ22,Φ25 | Φ10,Φ15,Φ20,Φ25,Φ28 |
| Disruption Capacity(ml)
(Need to choose the corresponding horn) |
0.1-750 | 10-1000 | 50-1200 |
| Input method | Touch control | ||
| Display | 7 inch TFT | ||
| Display items | Temperature, power, wave form, amplitude, pulse, time etc, total 10 items. | ||
| Protection device | Self-diagnostic function, program automatic error correction, over-load / over- temp. Protection display, etc. | ||
| Login password protection | Have | ||
| Computer on-line function | Optional | ||
| Sound proof box | Illumination, sterilization, automatic lifting, etc function. | ||
| Other function | Date storage 20 sets, print, ultrasonic interval / continuously etc function. | ||
How to choose ultrasonic horn? Welcome contact info@toption-china.com for free consultation.
|
|
