| Price: | Negotiable |
| Delivery Period: | 15-20 workdays |
| Payment Method: | LC, T/T, PayPal, Western Union, Small-amount payment, Money Gram |

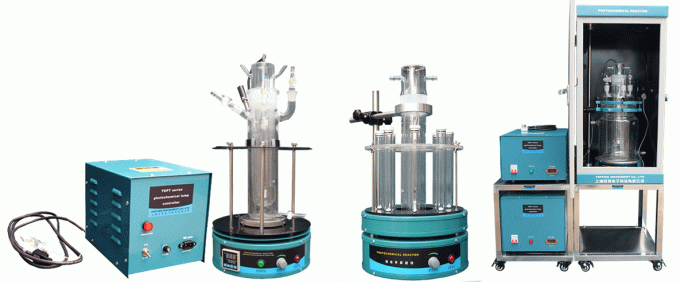

TOPT-I, TOPT-II series photocatalytic reactor are used as liquid phase photochemical reactor, you could do research of one sample per once, capacity contains 250ml, 500ml, 1000ml.
There’s three opening mouth at side of reactor for air inflow, temperature measure and sample introduction.
Large capacity of this series photochemical reactor could be customized.
If you have requirement of “constant temperature”, “take samples” and “air outlet”, please contact us info@toption-china.com for professional customization.
| Items | Quality | Unit | Part Name |
| 01 | 1 | Set | 500W xenon lamp controller |
| 02 | 2 | pcs | 500W xenon lamp |
| 03 | 1 | pcs | Fully quartz light source double layer protection cold trap(Bottom extension cooling cycle) |
| 04 | 1 | Set | 500ml glass reactor with 5 ports (include glass parts) |
| 05 | 1 | pcs | Plastic clamp parts of 6 ports glass reactor glass parts |
| 06 | 1 | Set | Reactor main body protection camera obscura |
| 07 | 1 | pcs | Power line for protection camera obscura |
| 08 | 1 | pcs | Product specification |
| 09 | 1 | pcs | Product warranty card |
| 10 | 1 | pcs | Product qualification certificate |
| 11 | 1 | pcs | Product packing list (with product specification) |

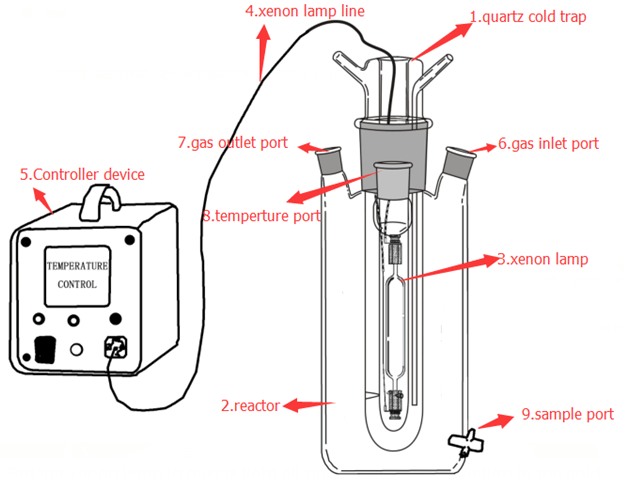

| 1 | Quartz cold trap | 2 | Reactor |
| 3 | Xenon lamp | 4 | Xenon lamp line |
| 5 | Controller device | 6 | Gas inlet port |
| 7 | Gas outlet port | 8 | Temperature port |
| 9 | Sample port | ||
1.Main parts: variety light source device, glass reactors, fully quartz light source protection cold trap, reactor main body protection camera obscura, etc. Could flexible upgrade to TOPTION photolysis of water hydrogen production system.
2. Could measure reaction kinetics and reaction constant, provide analysis of reaction products and free radical samples,etc.
3. Professional parallel reaction stirring apparatus could measure the temperature of material which in reactor, and digital display. At the same time could provide magnetic stirring and reactor fixed function.
4. Optional B type or D type multi-port glass reactor, micro circulation system & flowmeter, could realize flow circulating reaction.
5. TOPT-II configuration – our specialist could recommend the most suitable combination configuration based on your actual needs, also could provide professional customization according your actual request.

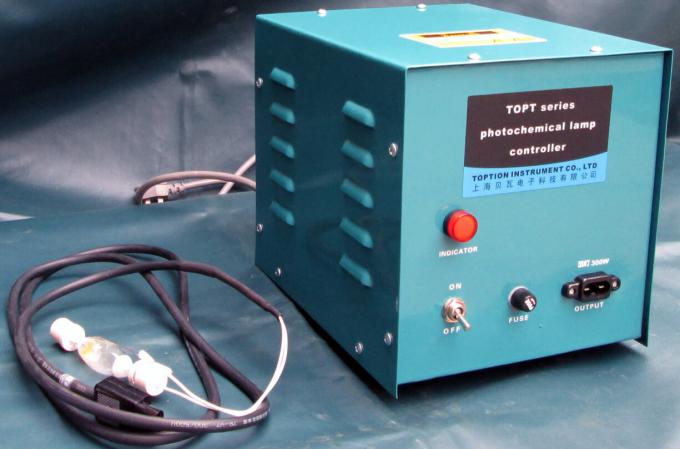

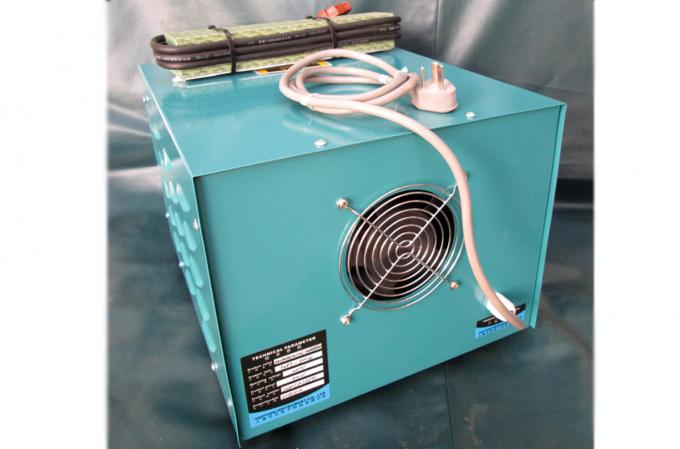

1.Xenon lamp and Xenon controller
Provide 500W long-arc xenon lamp normal and stable operating, other buttons are the same with mercury lamp, its spectral distribution and relative intensity are similar with visible light.
| Power (W) | Operating Voltage (V) | Effective arc length MM) | Mode of connection Wire |
| 500W | 75.6 | 220±20 | Single-ended leads |

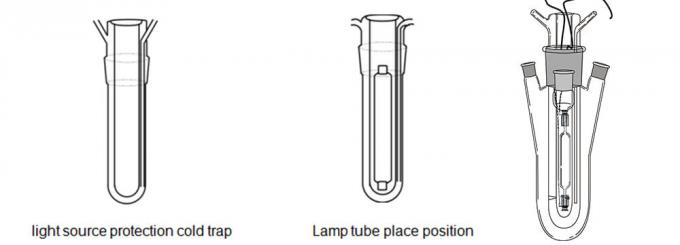

2. Fully quartz glass light source protection cold trap
This type fully quartz glass light source protection cold trap not only has UV light high efficient penetration rate, also could solve the temperature problem which caused by light source long time working, finally guarantee the reaction material just getting light illumination, and no any other outside influence of research.
Reasonable technology, simple structure, convenient operation, stable working, operator safety protection, free combination and flexible customization,etc.
TOPT-II photochemical reactor is widely used in chemosynthesis, environment protection and life science, etc.
TOPTION INSTRUMENT also supply special reaction vessel for fibrous and arrange material, solve the placement problem about different material in common reaction vessel, Contact info@toption-china.com to get photochemical reaction pdf & photochemical reactor price.

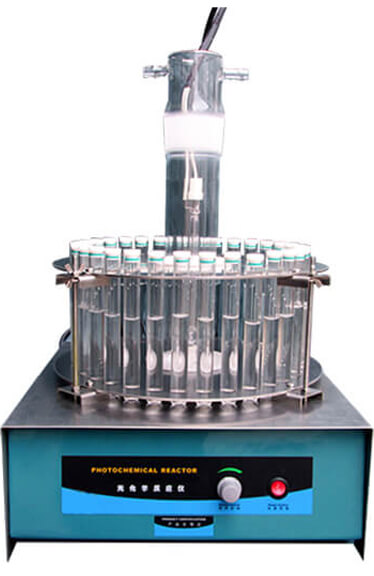

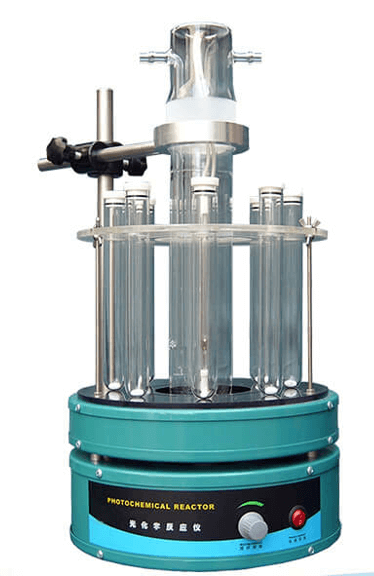

TOPT-IV, TOPT-V Series photochemical reactor is most suitable for universities and scientific research, doing small capacity photochemical reaction. You could do 8 samples photochemical reaction at the same time, so as to make your research more efficient.
Photocatalytic reactor design capacity 30ml, 50ml, 100ml, 150ml. with silicone stopper.
If you have requirement of “temperature measure”, “air inflow”, “air outlet” and “constant temperature”, then quartz test tube need to be customized, please contact info@toption-china.com for free consult.
| No. | Equipment list | TOPT-V |
| 1 | Protecting box(which can prevent ultraviolet ray, but have observation window) | 1 |
| 2 | UV Lamp control system (Xenon lamp,Metal halide lamp control system are optional) | 1 |
| 3 | UV Lamp ( xenon lamp, Metal halide lamp are optional) | 1 |
| 4 | Cold pit of quartz(which is used to reduce the heating of lamp) | 1 |
| 5 | Water shortage alarm(it will alarm when the water stop flowing, then you can shutoff the power ) | 1 |
| 6 | Stainless steel working platform, bottom with wheels. | 1 |
| 7 | 250ml glass reactor( there are 500ml,1000ml,2000ml,3000ml,5000ml are optional.) | 0 |
| 8 | 30ml quartz test reactor(there are 10ml,50ml,100ml,150ml are optional) | 8 |
| 9 | Magnetic stirrer with one field | 0 |
| 10 | Magnetic stirrer with eight magnetic fields (which can do eight samples experiment at the same time) | 1 |

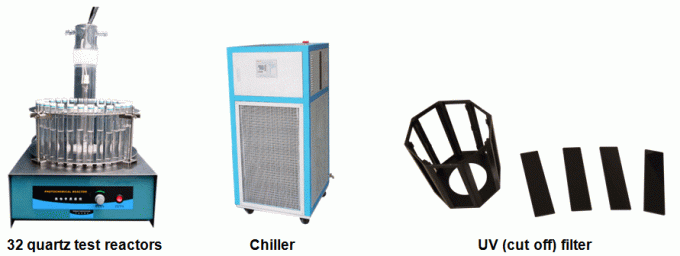

| Optional | ||
| A | Chiller for cooling | yes |
| B | Filter(there are UV cut 400nm type and UV through type) | yes |
| C | 32 quartz test reactors and magnetic stirrer with 32 magnetic fields(can do 32 samples experiments at the same time) | yes |
|
|
