| Price: | Negotiable |
| Delivery Period: | 15-20 workdays |
| Payment Method: | LC, T/T, PayPal, Western Union, Small-amount payment, Money Gram |

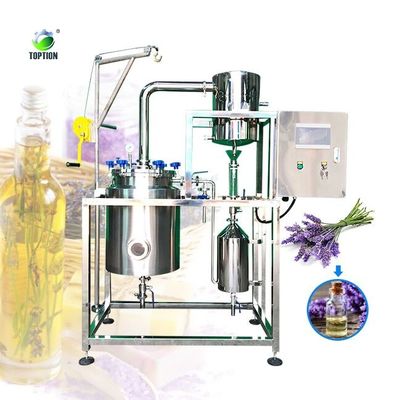

TOPTION stainless steel botanical / plant / flower extraction equipment working principe is – By steam distillation or water distillation, the steam passes through plants material and vapourises oil,mixtures of steam and oil vapors go into the condenser. After the cooling,oil formed.This is the ideal essential oil extraction steam distillation device for you to make essential oil no matter for laboratory use or batch production.
The application of TOPTION essential oil steam distillation equipment ( simple design, easy operation, one person can complete whole extraction process, from fresh plant load to get essential oil, high throughtput, efficient extraction process)
1. Plant Fruits: bouquet, prickly ash, castor, anise, lemon, litsea cubeba, pine tower.
2. Plant Rhizomes: ginger, aloe, clove, Atractylodes macrocephala.
3. Plant Mosaic: rose, wild mountain chrysanthemum, lavender, lilac, rosemary, bologna, camphor, see moon grass, mint.
Technical parameters of 500L 1000L essential oil extraction machine ( 50L 100L 200L 300L is available, and in stock for fast delivery)
| Specification | Model | TJE-500L | TJE-1000L |
| Effective volume | 500L | 1000L |
| Extraction temperature | ≤100℃ | ≤100℃ |
| Lifting method | Equipped with 1T electric lifting hoist | |
| Insulation thickness of cylinder | 50mm | 50mm |
| Extraction basket | 4mm aperture, 304 material, 1 standard | |
| Condenser | 4m2 | 8m2 |
| Collection tank | 50L | 80L |
| Water separator | The top glass sight glass comes with an oil outlet valve. | |
| Demister | 304 material, internal baffle, quick-opening hand hole on the top, easy to clean, in line with GMP requirements. | |
| steel platform | Carbon steel design or painting | |
1. Put in fresh flower / plant in stainless steel material basket, dried flower / plant is also available.
2. Steam distillation in the stainless steel essential oil extraction tank, there has a sight glass to observe the water level.
3. Condenser connect with tap water or chiller for efficient condensation.
4. Mixture of steam and oil vapours are separated in the oil separator.
5. Get essential oil, and the flower / plant dregs is unload from extraction tank.
|
|
