| Price: | Negotiable |
| Delivery Period: | 15-20 workdays |
| Payment Method: | LC, T/T, PayPal, Western Union, Small-amount payment, Money Gram |

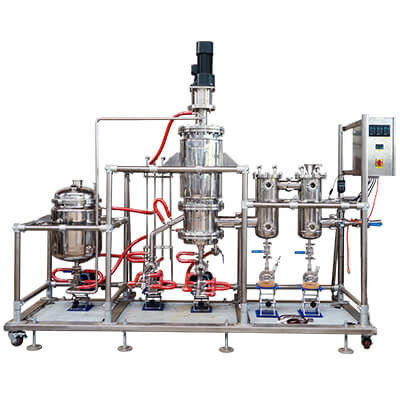

Molecular distillation equipment is applied for creating a high value clear distillate from Plant Oil Concentrates, such as refine CBD concentrates into a golden clear distillate that can be infused into a variety of edible products or fine oils to be used in vape cartridges or other products.
Technical parameters of 10-25 L/h MDS-30 series short path molecular distillation equipment:
|
Model |
MDS-30C |
MDS-30B |
|
Material tank |
30L jacketed tank |
30L jacketed tank |
|
2 sight glass at top, with insulated ball valve. |
2 sight glass at top, with insulated ball valve. |
|
|
Material charging |
Gear pump |
Gear pump |
|
Flow 5L～30L/H |
Flow 5L～30L/H |
|
|
200W motor, electronic speed regulation. |
200W motor, electronic speed regulation. |
|
|
Evaporator |
Evaporation area 0.2㎡ |
Evaporation area 0.2㎡ |
|
Film forming way: scraper (roller is optional) |
Film forming way: scraper (roller is optional) |
|
|
Material: 316L |
Material: 316L |
|
|
Mechanical seal (Magnetic seal is optional) |
Mechanical seal (Magnetic seal is optional) |
|
|
Film forming motor: 370W, mechanical constantly variable transmission, 200～1000rpm/min |
Film forming motor: 370W, mechanical constantly variable transmission, 200～1000 rpm/min |
|
|
Cold trap |
1. 1㎡chiller cooling cold trap |
1. 1㎡chiller cooling cold trap |
|
2. 3L liquid nitrogen cold trap |
2. 3L liquid nitrogen cold trap |
|
|
Dual-purpose (chiller & liquid nitrogen cold trap dual purpose) |
Dual-purpose (chiller & liquid nitrogen cold trap dual purpose) |
|
|
Choose 1 in above 3 types |
Choose 1 in above 3 types |
|
|
Heavier component discharge |
Gear pump |
29# Grinding mouth adapter |
|
Flow 5L～15L/H |
10L glass bottle 1pcs, bottle holder 1pcs |
|
|
200W motor, electronic speed regulation. |
Lifting table 1pcs |
|
|
Lighter component discharge |
Gear pump |
29# Grinding mouth adapter |
|
Flow 5L～25L/H |
10L glass bottle 1pcs, bottle holder 1pcs |
|
|
200W motor, electronic speed regulation. |
Lifting table 1pcs |
|
|
Material pipeline |
Jacketed insulation |
Jacketed insulation |
|
Shelf & assemble |
304 stainless steel pipe |
304 stainless steel pipe |
Technical parameters of MDS-10 series molecular distillation separation equipment
|
Model |
MDS-10 molecular distillation equipment ( A / B / C is different ) |
|
Material tank |
Upgrade15L jacketed stainless steel tank |
|
2 sight glass at top, with insulated ball valve. |
|
|
Material charging |
Gear pump |
|
Flow 3L～15L/H |
|
|
200W motor, electronic speed regulation. |
|
|
Evaporator |
Evaporation area 0.1㎡ |
|
Film forming way: scraper (roller is optional) |
|
|
Material:316L |
|
|
Mechanical seal (Magnetic seal is optional) |
|
|
Film forming motor:370W, mechanical constantly variable transmission,200～1000rpm/min |
|
|
Cold trap |
1. 0.4㎡chiller cooling cold trap |
|
2. 3L liquid nitrogen cold trap |
|
|
3. Dual-purpose(chiller & liquid nitrogen cold trap dual purpose) |
|
|
Choose 1 in above 3 types |
|
|
Heavier component discharge |
Gear pump |
|
Flow 3L～15L/H |
|
|
200W motor, electronic speed regulation. |
|
|
Lighter component discharge |
Gear pump |
|
Flow 3L～15L/H |
|
|
200W motor, electronic speed regulation. |
|
|
Material pipeline |
Jacketed insulation |
|
Shelf & assemble |
304 stainless steel pipe |
Multistage molecular distillation equipment customize
CE certification reliable quality guarantee, 15 years quality manufacturing, support one stop solution distillate cbd oil , contact info@toption-china.com for free consult now.
1-3 L/h short path distillation equipment for CBD
|
Model |
MDS-6C molecular distillation process |
|
Material tank |
3L jacketed stainless steel tank |
|
2 sight glass at top, with insulated ball valve. |
|
|
Material charging |
Gear pump |
|
Flow 0.5L～3L/H |
|
|
120W motor, electronic speed regulation. |
|
|
Evaporator |
Evaporation area 0.06㎡ |
|
Film forming way: scraper (roller is optional) |
|
|
Material: 316L |
|
|
Mechanical seal (Magnetic seal is optional) |
|
|
Film forming motor: 200W motor, electronic speed regulation. |
|
|
Cold trap |
1. 0.2㎡ chiller cooling cold trap |
|
2. or 1L liquid nitrogen cold trap |
|
|
3. Dual-purpose(chiller & liquid nitrogen cold trap dual purpose). |
|
|
Choose 1 in above 3 types |
|
|
Heavier component discharge |
Gear pump |
|
Flow 0.5L～3L/H |
|
|
120W motor, electronic speed regulation. |
|
|
Lighter component discharge |
Gear pump |
|
Flow 0.5L～3L/H |
|
|
120W motor, electronic speed regulation. |
|
|
Material pipeline |
Jacketed insulation |
|
Shelf & assemble |
304 stainless steel pipe |
|
|
